Technical parameters | |
| CAMERA | |
| Image sensor | 1/2.8"SONY 2 Mega Progressive Scan Exmor CMOS |
| Min.illumination | 0Lux/F1.4 (IR ON);Color: 0.02Lux/F1.4,B/W:0.002Lux/F1.4 |

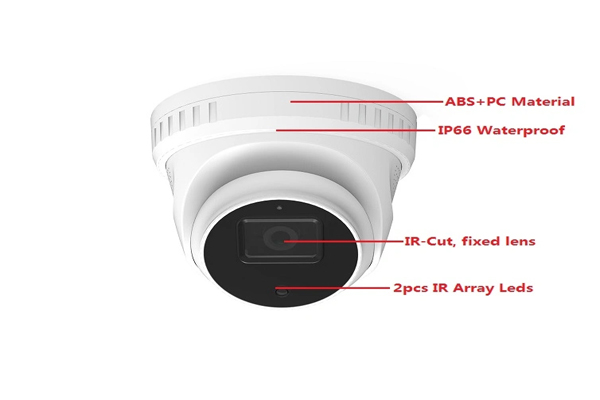

| IR distance | 10-15M (2*IR leds) |
| Electronic shutter | Auto/ Manual(1/5~1/100000), FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 3.6mm lens |
| Lens interface | M12 |
| Output | PAL/NTSC adjustable |
| WDR | TWDR(Off/ Low/ Middle/ High) |
| Light board control | Auto/ Manual/ Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation) |
| Slow Shutter | Off/ On |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO COMPRESSION | |
| Video compression | H.265/H.264 |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: main stream1920X1080@30fps,, sub-stream: D1@30fps PAL: main stream: 1920X1080@25fpss, sub-stream: D1@25fps |
| Max. Resolution | 1920X1080 |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support input/ output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP |
| Access protocol | GB28181 (optional) |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 8 |
| User permission | User add/ modify/ delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | Detection and analysis of the behavior of persons or vehicle targets only |
| Intelligent analysis | Target Counting, Retrograde Detection, Off-site Detection, Electronic Fence |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support, match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| System update | Support remote update |
| Human and vehicle shape detection | |
| Target Counting | The deployment time period can be set |
| Type of protection: personnel, vehicles, people and vehicles | |
| Test line can be set up, up to 4 | |
| Statistical methods: A→B/B→A, the number of people increased or decreased | |
| Electronic Fence | Setup time can be set |
| Test line can be set up, up to 4 | |
| Detection type: target entry, exit, wander, or intrusion detection | |
| Retrograde Detection | Setup time can be set |
| Test line can be set up, up to 4 | |
| Off-site Detection | Setup time can be set |
| Test line can be set up, up to 4 | |
| Departure time is available | |
| Report statistics (valid with TF card) | Target count: daily/monthly reports, line charts, bar charts, lists |
| Electronic fencing: lists | |
| Retrograde detection: list | |
| Departure detection: list | |
| INTERFACE | |

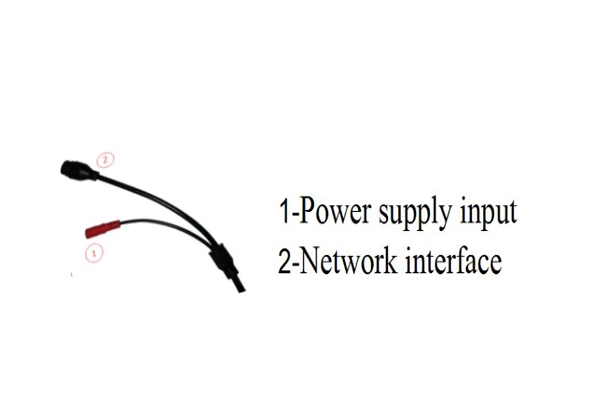

| Network Interface | RJ45 10M/100M network adaptive |
| Power | Supply |
