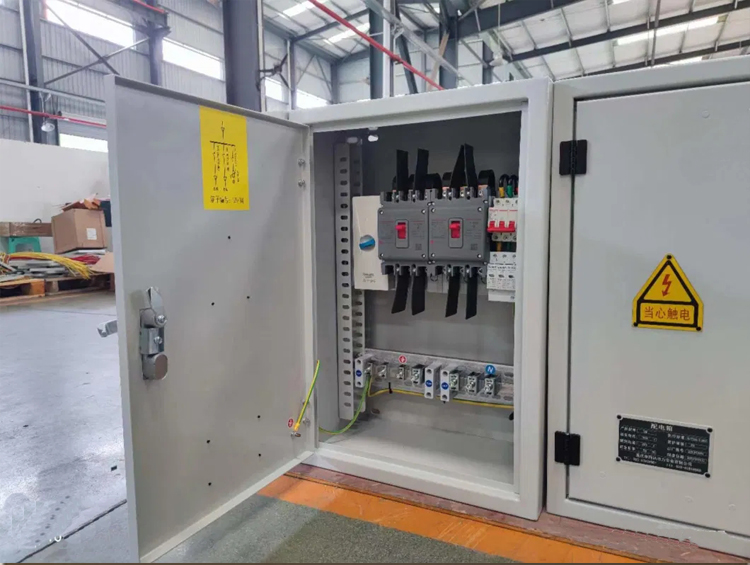

Low Voltage Metal Cabinet Power Supply Switch Box Rainproof Electrical Distribution Box
- Contact Us Online
- Free Hotline
+86-532-89639267
Product Details

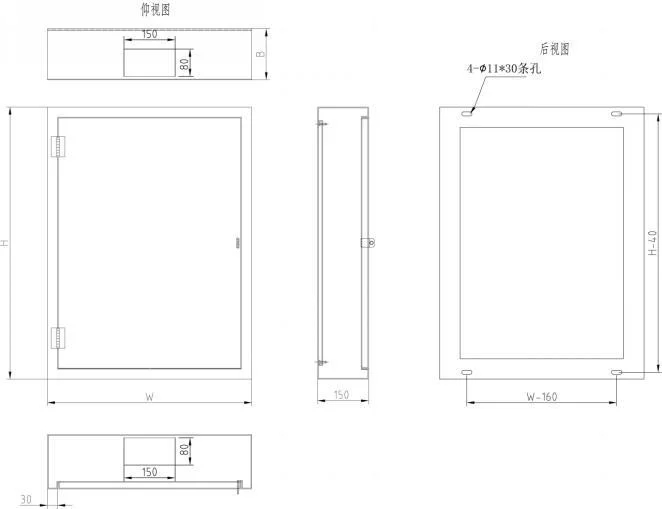

Description of Installation Size of Common Standard Distribution Box
It can be designed and produced according to the installation mode required by users
It can be designed and produced according to the installation mode required by users
| high H(mm) | wide | thick | Installation Size | Installation Size | Installation hole | |
| W(mm) | B(mm) | H-400(mm) | W-160(mm) | (mm) | ||
| 504015 | 500 | 400 | 150 | 460 | 240 | 4-φ11 |
| 504020 | 500 | 400 | 200 | 240 | ||
| 504025 | 500 | 400 | 250 | 240 | ||
| 604015 | 600 | 400 | 150 | 560 | 240 | |
| 604020 | 600 | 400 | 200 | 240 | ||
| 604025 | 600 | 400 | 250 | 240 | ||
| 605015 | 600 | 500 | 150 | 340 | ||
| 605020 | 600 | 500 | 200 | 340 | ||
| 605025 | 600 | 500 | 250 | 340 | ||
| 705015 | 700 | 500 | 150 | 660 | 340 | |
| 705020 | 700 | 500 | 200 | 340 | ||
| 705025 | 700 | 500 | 250 | 340 | ||
| 806015 | 800 | 600 | 150 | 760 | 440 | |
| 806020 | 800 | 600 | 200 | 440 | ||
| 806025 | 800 | 600 | 250 | 440 | ||
| 1008015 | 1000 | 800 | 150 | 960 | 640 | |
| 1008020 | 1000 | 800 | 200 | 640 | ||
| 1008025 | 1000 | 800 | 250 | 640 | ||
| 1008020 | 1000 | 800 | 200 | 640 | ||
| 1008025 | 1000 | 800 | 250 | 640 | ||
| 1008030 | 1000 | 800 | 300 | 640 | ||
| 1208020 | 1200 | 800 | 200 | 1160 | 640 | |
| 1208025 | 1200 | 800 | 250 | 640 |
